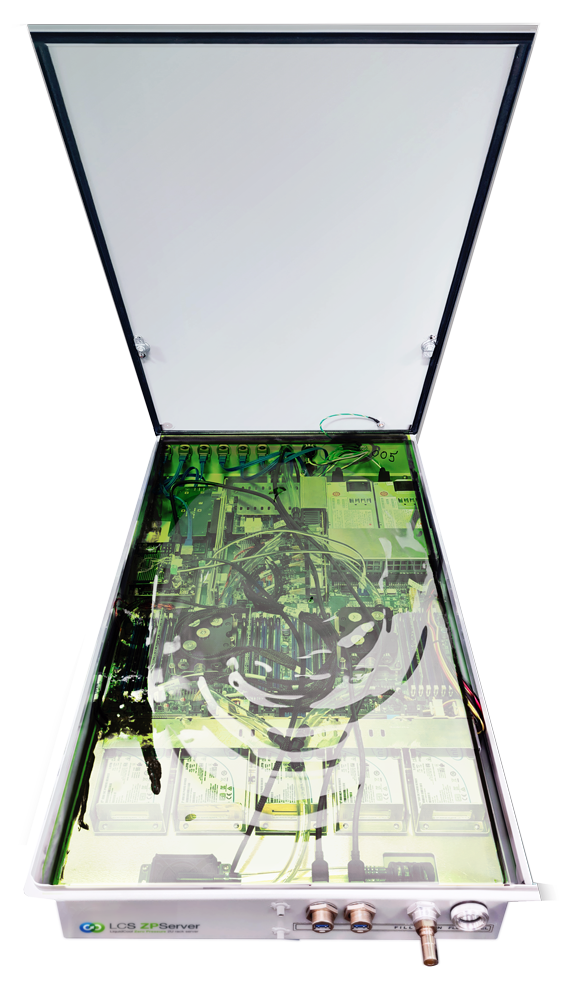

HIGH CAPACITY IMMERSION COOLED 2U RACK SERVERS
Versatile & Efficient
Designed for data centers, modular DCs, and traditional server rooms or data closets, the LCS ZPServer™ can be integrated into existing server environments or installed almost anywhere without the need for server room HVAC and offers maximum scalability with up to 4kW per 2U LCS ZPServer, 2kW per standard rack unit. Configured with the latest components to meet your application requirements.
–GET IN TOUCH TO DISCUSS YOUR SYSTEM, OPERATION, OR DESIGN.
EASY TO OWN & OPERATE –
Depending on individual requirements, the LCS SSS is a plug & play server solution, just add power.
RELIABLE OPERATION & LONG SYSTEM LIFE –
Sealed and liquid-filled systems protect electronics from dust and other airborne contaminants, eliminating common causes of failure.
QUIET-
LiquidCool servers do not have fans, so operation is quiet.
VERSATILE –
Install almost anywhere without server room infrastructure. LiquidCool systems operate without expensive chillers, air conditioning, raised floors, or water.
LOW CAPITAL COST –
Eliminates build-out costs. Add capacity without adding infrastructure. Install more systems in less space.
LOW OPERATING COSTS –
Save up to 98% on cooling costs and up to 45% on total costs.
Intel® Xeon® Scalable
or AMD EPYC™ Server
Processors
FORM FACTOR
2U SERVER / STANDARD 19″ RACK EIA & OCP
– configured per your application.
FLUID VOLUME
5 GALLON(about) per 2 rack units – Engineered SINGLE-PHASE dielectric heat transfer fluid / it is inexpensive, non-hazardous, eco-friendly, and never needs to be replaced.
POWER SUPPLY
SYSTEM DEPENDENT \ EXTERNAL \ POWER-SHELF \ FACILITY POWER REQUIRED 220/120VAC
COOLING
Patented Total Liquid Immersion w/Directed Flow(TIDF) \ Cools & protects components without fans.
DIMENSIONS–
W – 18″ 45.72cm. D – 33″ 83.82cm. H – 3.5″ 8.89cm.
I / O
Motherboard dependent
CHASSIS
2U / Rugged design protects electronics from oxidation, corrosion, dust, dirt, salt, humidity, and ESD.
WET WEIGHT
LCS ZPServer 2U -75 POUNDS (about)
HEAT EXCHANGE OPTIONS
LIQUID TO LIQUID – SILENT OPERATION – WASTE HEAT (UP TO 98%) IS CAPTURED IN THE LIQUID, CIRCULATED OUT OF THE SERVER CHASSIS, TRANSPORTED TO A REMOTE LOW-COST DRY COOLER AND DISSIPATED TO THE OUTSIDE AIR.
LIQUID IMMERSION / FAN ASSISTED – INSTALL ALMOST ANYWHERE / COMPATIBLE w/EXISTING SERVER ROOM – HOT/COLD ISLE \QUIET @ 55 dB.
LIQUID TO AIR (PASSIVE RADIATOR) – NEARLY SILENT w/OPTIONS TO USE WASTE HEAT FOR FACILITY HEATING APPLICATIONS
Video
HOW IT WORKS

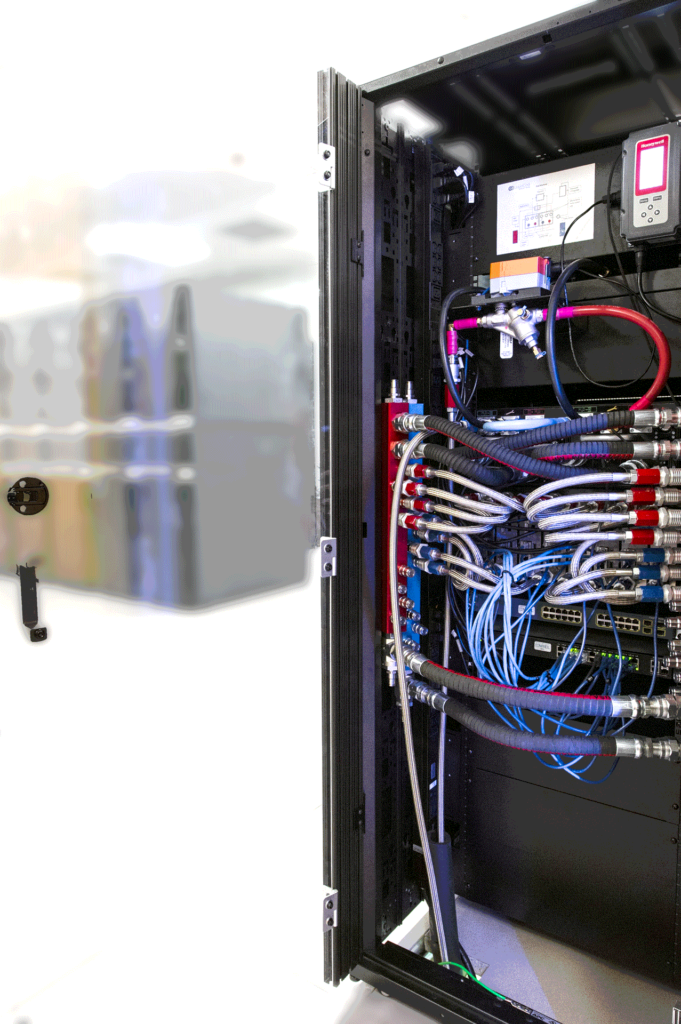

IMMERSION COOLING for RACK SERVERS –
OEM Brand & Form Factor Agnostic
We can configure a LiquidCool system for your application
