LiquidCool-ing Performance

+ SEALED Protection

LiquidCool TOTAL IMMERSION with Directed Flow – IIoT | HARSH ENVIRONMENT | EMBEDDED

The LCS MiniNODE™ creates a platform for computing in dusty, dirty, wet, salty, acidic, or any environment that typically shortens electronic reliability and life, or in environments so harsh that computer operation is prevented altogether.

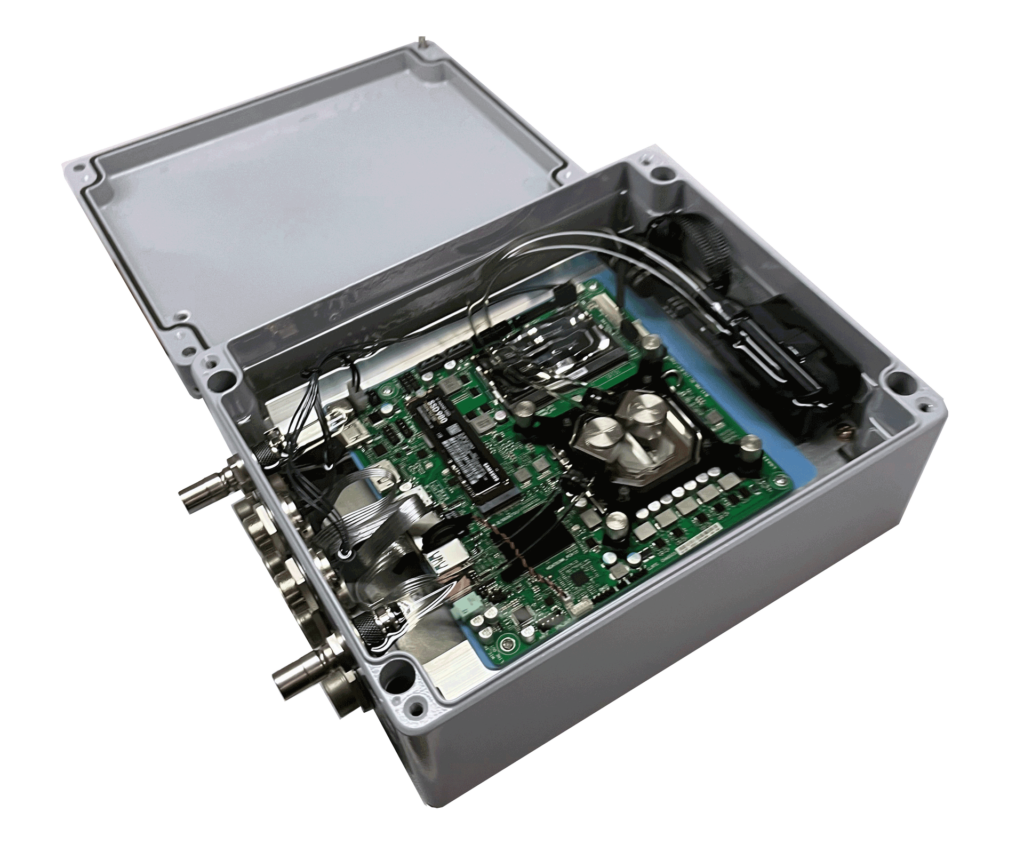

LiquidCool’s patented Total Immersion w/Directed Flow technology makes this possible by creating the ideal operating environment for electronics inside of a sealed and liquid-filled chassis – cool liquid is circulated into the chassis and directed first to the components that produce heat – the hot liquid is circulated out of the chassis where the heat is dissipated to the outside air.

innovative immersion cooling lcs

INDUSTRIAL STRENGTH COMPUTING

Reliable, Efficient, & QUIET

FAN-FREE / AC IS NOT Required

SEALED SYSTEM Protection (IP67)

Customize MIN ITX COMPATIBLE

TECHNOLOGY REDUCES Electronic Failures

SEALED HIGH PERFORMANCE

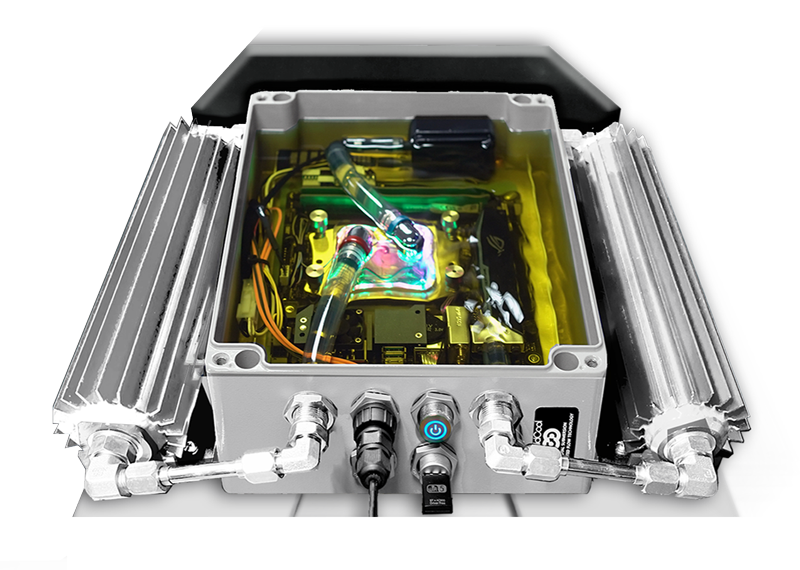

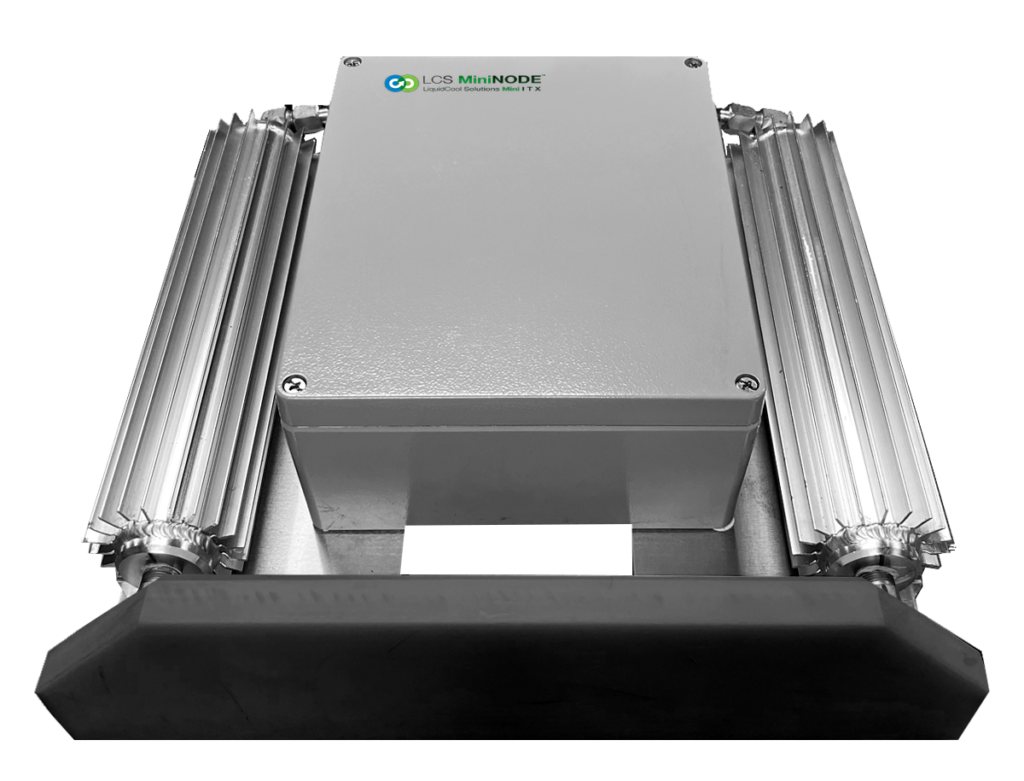

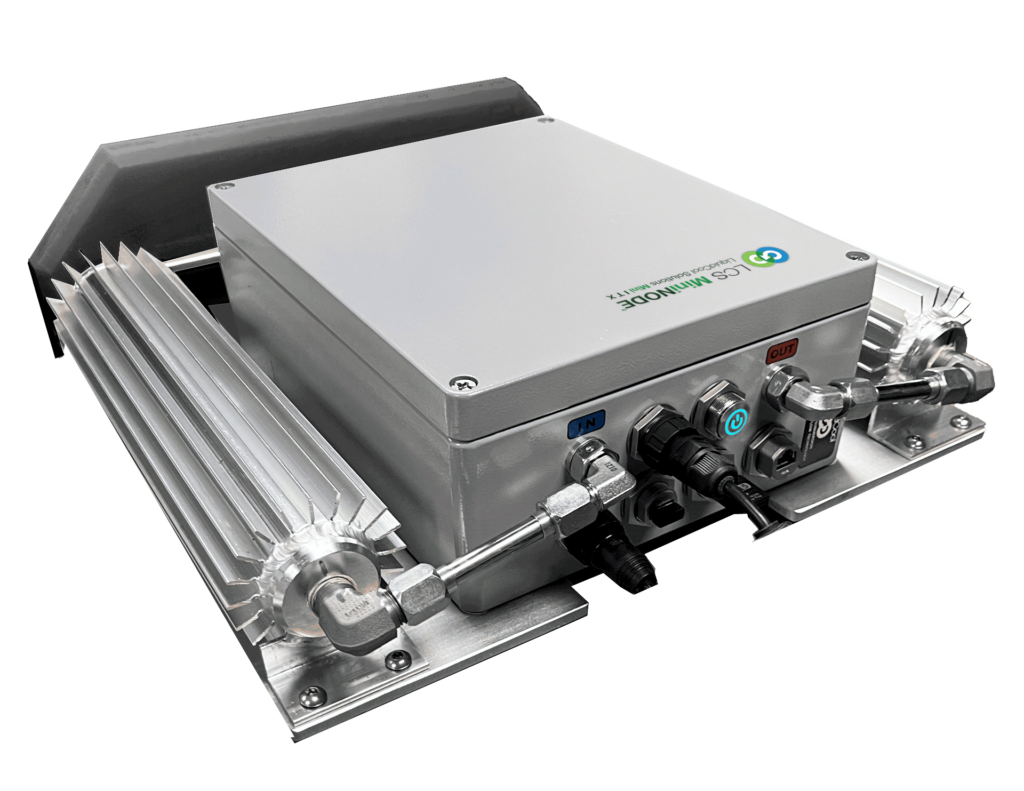

Unlike sealed systems that are limited in performance because they rely on air to move heat, the LCS MiniNODE’s immersion-cooled design allows for high performance/power configurations. A variety of heatsink options are available. The type and size of heat exchanger required depends on the amount of heat generated by the computer or server system and the ambient temperature of the MiniNODE’s installation location. The LCS MiniNODE shown at approximately 180Watts is passively cooled using external radiators – waste heat is exchanged by convection.

LCS LAB VIDEO \ SEALED SYSTEM IN WATER TANK W/FISH

FORM FACTOR


Thin Mini-ITX
6.7-in x 6.7-in / 17cm x17cm

FLUID VOLUME


1 GALLON(about) LiquidCool’s engineered SINGLE-PHASE dielectric heat transfer fluid is non-hazardous, eco-friendly, and never needs to be replaced.

POWER SUPPLY


180-250W / 19VDC
external brick | 120VAC INPUT

COOLING – PASSIVE


LiquidCool Solutions – Patented Total Liquid Immersion w/Directed Flow(TIDF) technology cools and protects components without fans.

DIMENSIONS – CHASSIS w/HEX


W 16in. – 40.6cm. | D 18in. 45.7cm. | H 4.5in. – 11.4cm.

I / O


Motherboard dependent HDMI, USB3, RJ45, POWER, Cool fluid in, Warm fluid out

CHASSIS


Rugged sealed (IP67) enclosures protect electronics from oxidation, corrosion, dust, dirt, salt, humidity, and ESD.

WET WEIGHT


25 POUNDS (about)

RECENT SYSTEM CONFIGURATION

CPU

AMD Ryzen™ 5600G
3.9 – 4.4 GHz
w/Radeon™ Graphics

of CPU Cores 6

of Threads 12

MEMORY


32GB DDR4 2933MHz2 x DDR4 SO-DIMM Slots
2933 / 2667 / 2400 / 2133
non-ECC, un-buffered memory
Max. system memory: 64GB

GRAPHICS

integrated AMD Radeon™ ZEN 3™

LAN


Gigabit LAN
Realtek RTL8111GR

STORAGE


1TB M.2 SAMSUNG™ 980PCIe®3.0 NVMe® SSD 1TB
(up to 3,500/3,000MB/s)1 x SATA3 6.0 Gb/s Connector, supports NCQ, AHCI 1 x Ultra M.2 Socket

OPERATING SYSTEM SUPPORT

MICROSOFT WINDOWS 10, 11 -64bit | Linux versions

– GET IN TOUCH to configure your MiniNODE

A LCS MiniNODE can be configured for your application
